Headsets

- Crown races for servicing cane creek headsets and Aheadsets

The Absolute Best Well over a decade ago, we set out to make the best premium headset on the market. With our 110 Series, we did just that, utilizing optimal materials, the most effective seals and the best aesthetics. With the flexibility to purchase complete assemblies or separate Tops and Bottoms, tops are available in either short (9mm) or tall (15mm) stack height bearing covers, the 110-Series offers a premium solution for nearly all straight and tapered configurations on the market today. From Integrated (IS) Tops to External Cup (EC) Conversion Bottoms and everything in between, you can mix and match your headset purchase to best meet your needs. - Technical Description: 110-Series IS41/28.6/H9 | IS52/40 - Top Type: IS - Integrated - Top Head Tube Inside Dia.: 41.1mm - Stem Clamp Dia.: 28.6mm - Top Stack Height: 9mm - Top Bearing Type: Top-quality, sealed stainless steel bearings - Bottom Type: IS - Integrated - Bottom Head Tube Inside Dia.: 52.1mm - Crown Race Seat Dia.: 39.79mm - Crown Race Type: Aluminum, Dual-Seal - Bottom Stack Height: 1mm - Bottom Bearing Type: Top-quality, sealed stainless steel bearings - Material: N/A - Weight: 79.48 grams

- Weight: 160g - Crown Race: 30 - S.H.I.S. Lower: EC34 - S.H.I.S. Upper: EC34 - S.H.I.S. Stem Clamp Diameter: 28.6 Threadless

Cane Creek's Aheadset is a simple, affordable solution for your headset needs. • Bearing Type: Cup and Cone • Color: Black • Crown Race: 30 • Defined Color: Black • Lower Stack Height: 12 mm • S.H.I.S Lower: EC34 • S.H.I.S Upper: EC34 • S.H.I.S. Stem Clamp Diameter: 28.6-26tpi Quill • Upper Stack Height: 22 mm • Weight: 205 g

Super-smooth steering, quality materials, cutting-edge design and serious durability are all hallmarks of Cane Creek headsets. The 40 Series has light, tough, and beautiful machined 6061 T6-aluminum cups that are internally relieved for even more gram shaving. You also get Cane Creek's corrosion-resistant black-oxide sealed bearings and quality seals throughout to keep the grease in and the dirt out, including Cane Creek's Clip Seal that completely seals the top assembly.

Cane Creek's 10 Series has light, tough, and beautiful machined 6061 T6-aluminum cups, Cane Creek's corrosion-resistant black-oxide angular-contact bearings and quality seals throughout to keep the grease in and the dirt out. • Technical Description: EC34/28.6/H16/K|EC34/30 /H12/K • Top Type: EC - External Cup • Top Head Tube Inside Dia.: 33.95mm • Stem Clamp Dia.: 28.6mm • Top Stack Height: 16mm • Top Bearing Type: Black Oxide • Bottom Type: EC - External Cup • Bottom Head Tube Inside Dia.: 33.95mm • Crown Race Seat Dia.: 30.015mm • Crown Race Type: Polymer • Bottom Stack Height: 12mm • Bottom Bearing Type: Black Oxide • Material: 6061 aluminum • Weight: 88.29g

• Sealed cartridge bearings • CNC machined 6061-T6 aluminum cups with laser etched logos • 26.4mm & 27.0mm races included • S.H.I.S.: EC30/25.4-24tpi|EC30/26 • Steerer Diameter: 25.4mm • Cup Diameter: 30.2mm • Race Diameter: 26.4mm • Stack Height: 42.5mm • Size: 1-inch • Black or Silver • Weight: 110g including lock nut

Super-smooth steering, quality materials, cutting-edge design and serious durability are all hallmarks of Cane Creek's 40-Series headsets. • Technical Description: ZS56/30/H4/K • Bottom Type: ZS - ZeroStack • Bottom Head Tube Inside Dia.: 55.95mm • Crown Race Seat Dia.: 30.015mm • Crown Race Type: Steel, Face-Sealed • Bottom Stack Height: 4mm • Bottom Bearing Type: Black Oxide, Sealed • Material: 6061 aluminum • Weight: 88g

Origin-8's SSR Threadless Headset is for 1 1/8-inch threadless forks. It features CNC machined 7075-aluminum cups and stainless-steel cartridge bearings for excellent performance and long life. It also comes in many colors to customize your ride. - 93g including star nut and laser top cap - Stack Height: 28.5mm **Anodized colors will vary from batch to batch and may not match exactly - S.H.I.S.: EC34/28.6|EC34/30

Converts quill style forks to use threadless stems.

Super-smooth steering, quality materials, cutting-edge design and serious durability are all hallmarks of Cane Creek's 40-Series headsets. • Technical Description: ZS56/40/H4/K • Bottom Type: ZS - ZeroStack • Bottom Head Tube Inside Dia.: 55.95mm • Crown Race Seat Dia.: 39.79mm • Crown Race Type: Steel, Face-Sealed • Bottom Stack Height: 4mm • Bottom Bearing Type: Black Oxide, Sealed • Material: 6061 aluminum • Weight: 65g

Made in the USA, BlingKits add a dash of style and color to any bike in an easy to manage package. - Includes a 3mm, 5mm,10mm,15mm headset spacer and integrated 5mm top cap - Includes 2x sets of anodized to match bottle cage bolts

Super-smooth steering, quality materials, cutting-edge design and serious durability are all hallmarks of Cane Creek's 40-Series headsets. • Technical Description: ZS44/28.6/H8/K|ZS56/40/H4/K • Top Type: ZS - ZeroStack • Top Head Tube Inside Dia.: 44.00mm • Stem Clamp Dia.: 28.6mm • Top Stack Height: 8mm • Top Bearing Type: Black Oxide, Sealed • Bottom Type: ZS - ZeroStack • Bottom Head Tube Inside Dia.: 55.95mm • Crown Race Seat Dia.: 39.79mm • Crown Race Type: Steel, Face-Sealed • Bottom Stack Height: 4mm • Bottom Bearing Type: Black Oxide, Sealed • Material: 6061 aluminum • Weight: 109g

The 40-Series is the workhorse of Cane Creek's headset line-up. Representing the balance of performance, durability and value, the series incorporates all the features necessary for a robust, lightweight, long-lasting headset. Integrated bearings fit directly into compatible head tubes without the need of a bearing press. - Sealed black oxide bearings - Carbon-friendy compression ring captured in top cover, keeping shims in place - Steel crown race with integrated seals - Interlok spacer compatible - Uses 36/45 degree crown race and compression ring - Compatible with tapered 1-1/8" to 1-1/2" steerer tubes, or straight 1-1/8" steerers with a conversion crown race (sold separately)

Cane Creek's Aheadset is a simple, affordable solution for your headset needs. • Bearing Type: Cup and Cone • Color: Black • Crown Race: 30 • Defined Color: Black • Lower Stack Height: 5 mm • S.H.I.S Lower: ZS44 • S.H.I.S Upper: ZS44 • S.H.I.S. Stem Clamp Diameter: 28.6 • Upper Stack Height: 10 mm • Weight: 130 g

Crown races for Cane Creek headsets fit a variety of lowers and crown race seat diameters. - Compatible with 10-, 40- and 110-Series headsets and backwards compatible with S and XX Series - Integral mold seals keep out the elements - Durable steel construction

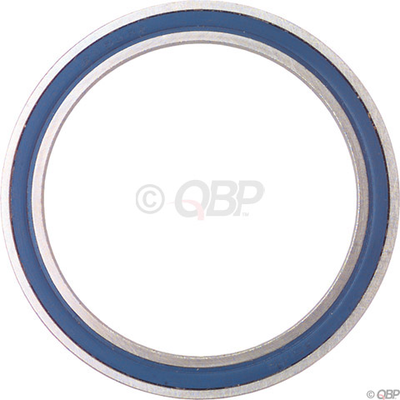

This is the Integrated Bottom Bearing for the Cane Creek 110 Series headset. Please contact us if you have any questions about which parts are correct for your headset.

Hellbender 70 Slam Top Assembly headset.
